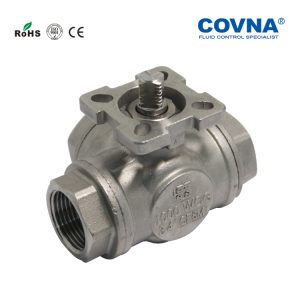

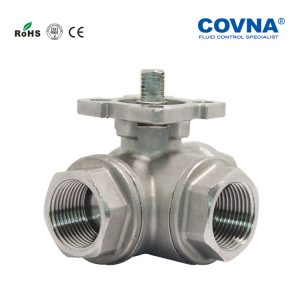

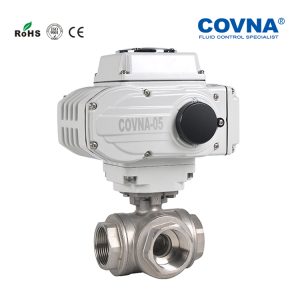

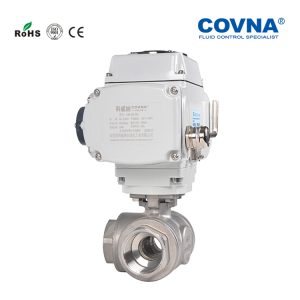

COVNA HK60-Q-T 3 Way Electric Ball Valve
Explore our range of electric 3-way ball valves, including L-port and T-port configurations. Our electric 3-way ball valves feature adjustable fluid flow direction, providing flexible flow control solutions. Achieve efficient fluid distribution and conversion through automated operation. Learn more about the features and applications of our electric 3-way ball valves.
Model
Actuator Type: On-Off Type, Modulating Type
Body Material: Stainless Steel 304/316/316L
Pressure: 10 / 16 bar
Temperature Of Media: -10 to 180℃ (14℉ to 356℉)
Suitable Media: Water, Steam, Air, Oil, etc
Voltage: DC-12V, 24V; AC-24V, 110V, 220V, 380V
Connection Type: 3-Way Threaded Ball Valve
What Is Electric 3 Way Ball Valve?
Electric 3-way ball valve(Motorized 3 way ball valve) means 3-way ball valve driven by electric actuator by AC/DC power supply and 4-20mA signal to open or close to start, stop or diverter the flow rate. 3 way ball valve has T type and L type options to meet your diverter requirements.
Valve body could be UPVC and stainless steel material to meet different medium requirements.
Meanwhile, the switch angle could be adjusted by the electric actuator to achieve flow rate control.
Features Of HK60-Q-T 3 Way Electric Actuated Ball Valve:
- 3-Way threaded ball valve with excellent diverter performance. Available in T and L type to meet your requirements
- Threaded connection with features of easy to connect and not easy to leak
- Made of stainless steel material with features of strong and anti-corrosion performance. Suitable for air, water, steam, seawater, fuel and so on
- Multiple control methods like a manual override, signal control and AC/DC power supply. To let you control the valve remotely. And once some urgent happens, you could control it by manual override to keep the valve and the project safe.
Technical Parameters Of 3 Way High-Pressure Electric Ball Valve:
| Medium | Air, water, steam, oil, liquid, etc | End Connection | Threaded or Welding |
| Port size range | DN08 to DN50 | Core Material | Stainless Steel 304/316/316L |
| Body Material | Stainless Steel 304/316/316L | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Structure | 3 way ball valve in T port and L port | Voltage Tolerance | ±10% |
| Temperature Of Media | -10 to 180℃(14℉ to 356℉) | Working Pressure Range | 10 bar to 400 bar |

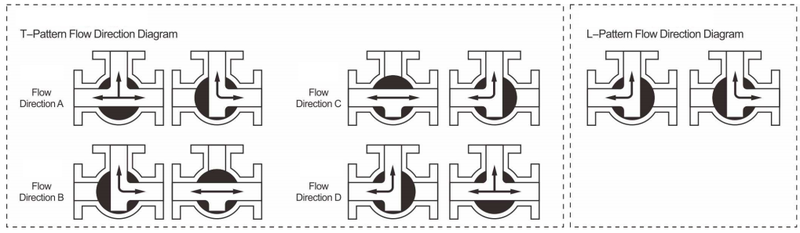

Way Ball Valve Flow Diagram:

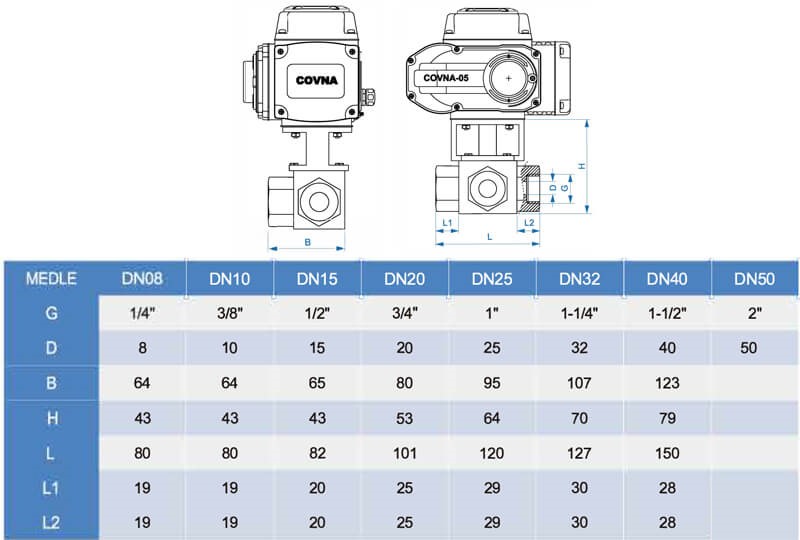

Dimension Of 3 Way High-Pressure Electric Ball Valve:
Technical Parameters of Valve Actuator :
| On/Off Type | 90 degree rotation. Feedback: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA |
| Modulating Type | Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm. |
| Intelligent Type | Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply,signal control and manual override. High torque up to 4000Nm. |
| Field Operation | The Field, Remote Control Switch Regulation And MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC-110V, 220V, 380V, DC-12V, 24V, Special Voltage Can Be Customized |
| Protection Class | IP65; Explosion Proof Construction Are Available: EX d II BT4 |
Technical Parameters of Valve Body:
| Model | HK60-Q-P | Voltage | 24V/12V DC; 110V/220V AC |
| MOQ | 1 Set | Actuator Type | On Off/ Modulating Control |
| Applicable Standard | GB, ANSI, JIS, DIN | No. of Ways | 2 Way |
| Port Size | DN08~DN100 | End Connection | True union |
| Operating Pressure | 1000 WOG | Media | Water, Air, Gas, Acid base crossoive media |
| Body Material | Plastic PVC | Temp. of Media | -10°C to 180°C |
| Valve Ball | Stainless Steel | Certification | ISO 9001, CE, TUV, SGS |
| Sealing Material | EODM | Warranty | 1 Year (12 Months) |
Technical Parameters of Valve Body:
| Model | HK60-Q-P | Voltage | 24V/12V DC; 110V/220V AC |
| MOQ | 1 Set | Actuator Type | On Off/ Modulating Control |
| Applicable Standard | GB, ANSI, JIS, DIN | No. of Ways | 2 Way |
| Port Size | DN08~DN100 | End Connection | True union |
| Operating Pressure | 1000 WOG | Media | Water, Air, Gas, Acid base crossoive media |
| Body Material | Plastic PVC | Temp. of Media | -10°C to 180°C |
| Valve Ball | Stainless Steel | Certification | ISO 9001, CE, TUV, SGS |
| Sealing Material | EODM | Warranty | 1 Year (12 Months) |
