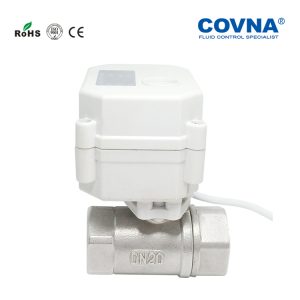

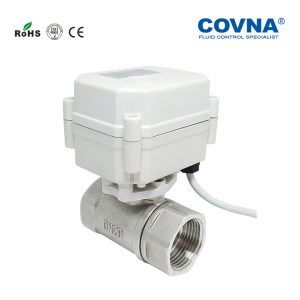

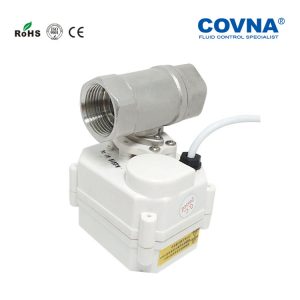

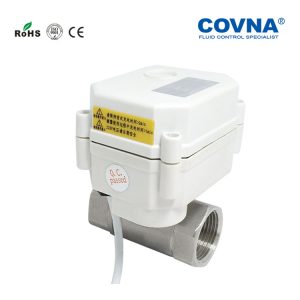

A20-T Series 2 Way SS304 Electric Ball Valve
Precise Control and Versatility: This electric motorized flow control valve offers a wide range of voltage options, including DC 3/6V, DC 9/24V, AC 220V, and AC 85/265V, making it suitable for various applications and environments. The valve’s adjustable torque and flow control enable precise management of fluid flow.
Durable and Corrosion-Resistant Construction: The valve features a stainless steel (SS304/brass) body, ensuring durability and resistance to corrosion in harsh environments. This makes it an ideal choice for applications involving water and other corrosive media.
High-Quality Certification and Protection: This product complies with CE certification standards and boasts an IP65 protection grade, guaranteeing its reliability and safety in various settings.
Customization Options and Support: The manufacturer offers OEM and ODM customization support, allowing for tailored solutions to meet specific customer needs. This flexibility is particularly beneficial for businesses and industries requiring unique or specialized products.
Long-Term Reliability and Warranty: With a one-year warranty, this electric motorized flow control valve is designed to provide long-term reliability and peace of mind for users. Its high-quality construction and durable materials ensure consistent performance over an extended period.

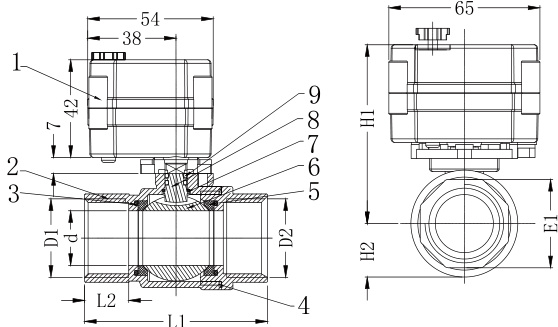

AssembleDiagram
Components
| No. | Name | Material | Specification | Quantity |
| 1 | Actuator | PPO | 1 | |
| 2 | Valve Body | Stainless Steel | 304 | 1 |
| 3 | O-ring | FKM | 2 | |
| 4 | Sealing Gasket | PTFE | 1 | |
| 5 | Valve Seat | PTFE | 2 | |
| 6 | Ball | Stainless Steel | 304 | 1 |
| 7 | Gasket | PTFE | 1 | |
| 8 | Valve Stem | Stainless Steel | 304 | 1 |
| 9 | O-ring | FKM | 2 |
| DESCRIPTION | D1/D2 | d±0.3 | L1±1 | L2±1 | E1±0.5 | H1±1 | H2 |
| 8-S2-B | 1/4″ | 10 | 51 | 12 | 21 | 70 | 14 |
| 10-S2-B | 3/8″ | 10 | 51 | 12 | 21 | 70 | 14 |
| 15-S2-B | 1/2″ | 15 | 62 | 14 | 25 | 72 | 17 |
| 20-S2-B | 3/4″ | 20 | 72 | 17 | 31 | 75.5 | 20 |
| 25-S2-B | 1″ | 25 | 79 | 18 | 38 | 78.5 | 24.5 |
| Valve size | NPT/BSP 1/4″ 3/8″ 1/2″3/4″ 1″ (Optional) |
| Maximum working pressure | 1.0 MPa |
| Circulation medium | Fluid,air |
| Working voltage | AC/DC110-230V |
| Wiringdiagram | CR202CR301CR303CR305CR306CR401CR502 CR702CR703CR704CR705CR706(Optional) |
| Working current | ≤500mA |
| Open/close time | ≤5S |
| Life time | 70000 times (testing pressure is 0.4MPa,medium is water) |
| Valve body material | SS304 SS316 |
| Actuatormaterial | PPO |
| Sealingmaterial | FKM&PTFE |
| Actuatorrotation | 90° |
| Torque force | 3 N.m |
| Cable length | 0.5m,1.5m (Optional) |
| Environmenttemperature | -15°℃~50°℃C |
| Liquid temperature | 2℃~90℃ |
| Manualoverride | Yes No (Optional) |
| Open/close indicator | Yes |
| Protection class | IP67 |
