A20-T Series 2 Way UPVC Electric Ball Valve
Precise Control and Versatility: This electric motorized flow control valve offers a wide range of voltage options, including DC 3/6V, DC 9/24V, AC 220V, and AC 85/265V, making it suitable for various applications and environments. The valve’s adjustable torque and flow control enable precise management of fluid flow.
Durable and Corrosion-Resistant Construction: The valve features a stainless steel (SS304/brass) body, ensuring durability and resistance to corrosion in harsh environments. This makes it an ideal choice for applications involving water and other corrosive media.
High-Quality Certification and Protection: This product complies with CE certification standards and boasts an IP65 protection grade, guaranteeing its reliability and safety in various settings.
Customization Options and Support: The manufacturer offers OEM and ODM customization support, allowing for tailored solutions to meet specific customer needs. This flexibility is particularly beneficial for businesses and industries requiring unique or specialized products.
Long-Term Reliability and Warranty: With a one-year warranty, this electric motorized flow control valve is designed to provide long-term reliability and peace of mind for users. Its high-quality construction and durable materials ensure consistent performance over an extended period.

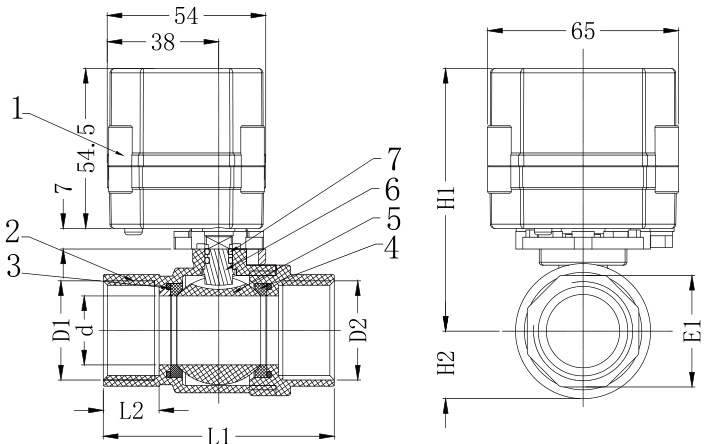

Assemble Diagram
Components
| No. | Name | Material | Quantity |
| 1 | Actuator | PPO | 1 |
| 2 | Valve Body | UPVC | 1 |
| 3 | O-ring | EPDM | 2 |
| 4 | Valve Seat | PTFE | 2 |
| 5 | Ball | UPVC | 1 |
| 6 | Valve Stem | UPVC+SS304 | 1 |
| 7 | O-ring | FKM | 1 |
| DESCRIPTION | D1/D2 | d±0.3 | L1±1 | L2±1 | E1±0.5 | H1±1 | H2 |
| 15-P2-C | 1/2″ | 14 | 60 | 12 | 29.5 | 88.8 | 19.5 |
| 20-P2-C | 3/4″ | 17 | 73 | 17 | 37 | 90.5 | 22 |
| 25-P2-C | 1″ | 23 | 80 | 18 | 43.5 | 95.5 | 26.5 |
| 32-P2-C | 1 1/4″ | 26 | 96 | 23 | 50 | 94.5 | 28 |
| Product size | NPT/BSP/No Thread Glued Type 1/2″ 3/4″ 1″ 1/4″(Optional ) |
| Maximum working pressure | 1.0 MPa |
| Circulation medium | Fluid,air |
| Working voltage | DC5V DC12V DC24VAC/DC9-24V (Optional) |
| Wiring diagram | CR201 CR202 CR301 CR302 CR303 CR304 CR305 CR306 CR501 CR502 CR701 CR702 CR703 CR705 CR706 (Optional) |
| Working current | ≤500mA |
| Open/close time | ≤8S |
| Life time | 70000 times (testing pressure is 0.4MPa,medium is water) |
| Valve body material | UPVC PPE (Optional) |
| Actuator material | PPO |
| Sealing material | EPDM& PTFE |
| Actuator rotation | 90° |
| Torque force | 3 N.m |
| Cable length | 0.5m,1.5m (Optional) |
| Environmenttemperature | -15C~50°℃ |
| Liquid temperature | 2℃~55℃ |
| Manual override | Yes No (Optional) |
| Open/close indicator | Yes No (Optional) |
| Protection class | IP67 |
