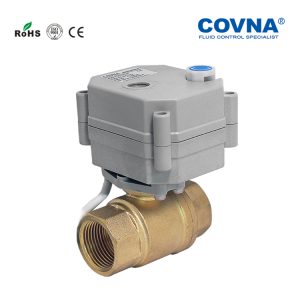

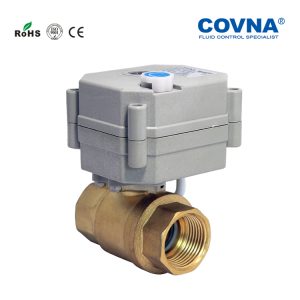

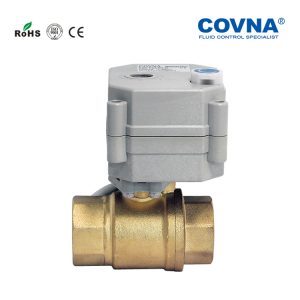

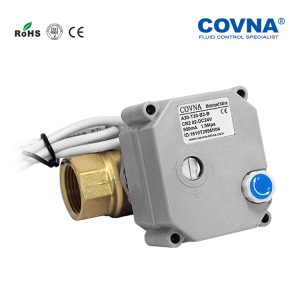

A20-TSeries2Way Brass Electric Ball Valve
Precise Control and Versatility: This electric motorized flow control valve offers a wide range of voltage options, including DC 3/6V, DC 9/24V, AC 220V, and AC 85/265V, making it suitable for various applications and environments. The valve’s adjustable torque and flow control enable precise management of fluid flow.
Durable and Corrosion-Resistant Construction: The valve features a stainless steel (SS304/brass) body, ensuring durability and resistance to corrosion in harsh environments. This makes it an ideal choice for applications involving water and other corrosive media.
High-Quality Certification and Protection: This product complies with CE certification standards and boasts an IP65 protection grade, guaranteeing its reliability and safety in various settings.
Customization Options and Support: The manufacturer offers OEM and ODM customization support, allowing for tailored solutions to meet specific customer needs. This flexibility is particularly beneficial for businesses and industries requiring unique or specialized products.
Long-Term Reliability and Warranty: With a one-year warranty, this electric motorized flow control valve is designed to provide long-term reliability and peace of mind for users. Its high-quality construction and durable materials ensure consistent performance over an extended period.

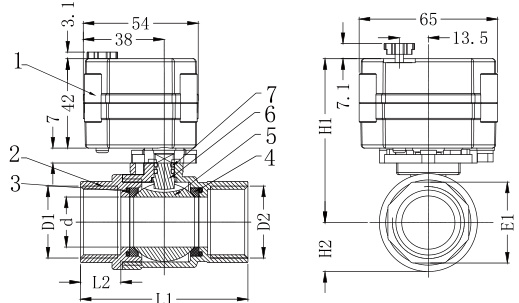

AssembleDiaqram
Components
| No. | Name | Material | Specification | Quantity |
| 1 | Actuator | PPO | 1 | |
| 2 | Valve Body | Brass | 1 | |
| 3 | O-ring | FKM | 2 | |
| 4 | Valve Seat | PTFE | 2 | |
| 5 | Ball | stainless steel | 304 | 1 |
| 6 | Valve Stem | Brass | 1 | |
| 7 | O-ring | FKM | 2 |
| DESCRIPTION | D1/D2 | d±0.3 | L1±1 | L2±1 | E1±0.5 | H1±1 | H2 |
| 8-B2-B | 1/4″ | 8 | 50 | 12 | 20.5 | 67.5 | 12 |
| 10-B2-B | 3/8″ | 10 | 50 | 12 | 20.5 | 67.5 | 12 |
| 15-B2-B | 1/2″ | 15 | 57 | 12 | 25 | 71 | 16 |
| 20-B2-B | 3/4″ | 20 | 65.5 | 15 | 31 | 74.5/76 | 19 |
| 25-B2-B | 1″ | 23.5 | 71.5 | 16 | 38 | 76.5 | 22 |
| 32-B2-B | 1 1/4″ | 25 | 80 | 18 | 46 | 78 | 25 |
| 32-B2-B | 1 1/4″ | 29 | 80 | 15 | 46 | 93 | 27 |
| Product size 口径 | NPT/BSP 1/4″3/8″1/2″3/4″1″ 1 1/4″(Optional) |
| Maximum working pressure 最大工作压力 | 1.0 MPa |
| Circulation medium 介质 | Fluid,air |
| Working voltage 额定电压 | DC5VDC12V DC24VAC/DC9-24V |
| Wiring diagram接线图 | CR201CR202 CR701CR702 CR703CR705CR706 CPt306aI) |
| Working current 工作电流 | ≤500mA |
| Open/close time开关时间 | ≤5S |
| Life time 寿命 | 70000 times (testing pressure is 0.4MPa,medium is water) |
| Valve body material 阀材质 | Brass |
| Actuatormaterial执行器材质 | PPO |
| Sealing material 密封材料 | FKM&PTFE |
| Actuator rotation 执行器旋转角度 | 90° |
| Torque force 扭力 | 3 N.m |
| Cable length 线长 | 0.5m,1.5m (Optional) |
| Environmenttemperature环境温度 | -15°℃~50°℃C |
| Liquid temperature 液体温度 | 2C~90℃ |
| Manual override 手动功能 | Yes No (Optional) |
| Open/close indicator 开关指示 | Yes No (Optional) |
| Protection class 防护等级 | IP67 |
