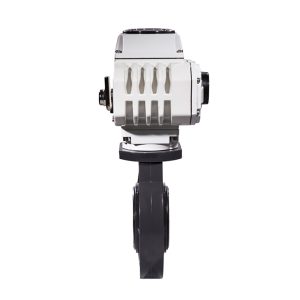

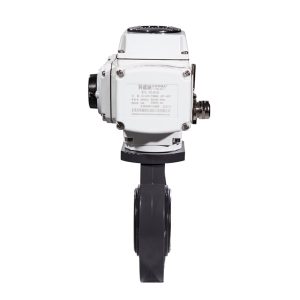

COVNA HK60-D-P CPVC Series Plastic Electric Butterfly Valve

COVNA HK60-D-P electric plastic pvc butterfly valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, UPVC or PVC body construction, optional CPVC, 220VAC standard voltage, minimum 2 inch lug connection, default NBR seat, suitable for most air, water, light oil, fuels, solvents, alcohol and many acids, EPDM seat is optional. Low Weight, Low Cost, Anti-Corrosive & Food Safe. Easy to operate and with a convenient modular design for gas or liquid piping system.

Model	HK60-D-P
Torque Range	50Nm to 4000Nm
Size Range	2in to 20in (2″, 2-1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″)
Pressure	10bar
Max. Temperature	-10℃ to 80℃ (14℉ to 176℉)
Voltage	DC-12V, 24V; AC-24V, 110V, 220V, 380V
Medium	Water, wastewater, seawater, and another medium

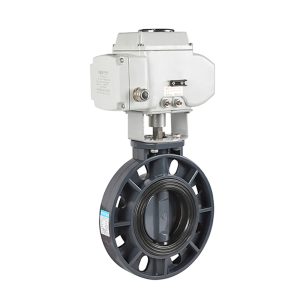

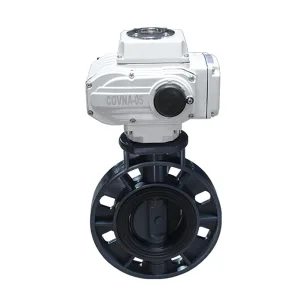

COVNA Fluorine Lined Plastic Electric Butterfly Valve

Industrial grade PVC butterfly valve, Polypropylene (PP) disc
● Pressure rated 150psi at 73°F. EPDM primary liner.
● ANSI 150 wafer-style flange connection
● Suitable for using with potable/drinking water
● Quarter turn operation with mechanical stops
● Actuator Type: ON OFF Type, Regulating Type and Intelligent Type

Technical Parameters of Valve Actuator

ON/OFF Type	Feedback: the active contact signal, passive contact signal, resistant, 4-20mA
Regulation Type	Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Field Operation	The field, remote control switch regulation and MODBUS, PROFIBUS field bus
Voltage optional	AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized
Protection Class	IP65

Model	05	10	16	30	60	125	250	400
Torque Output	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm

Series	5	10	16	30	60	125	250	400
Torque Output	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
90° Cycle Time	20S	15/30S	15/30S	15/30S	30S	100S	100S	100S
Angle Of Rotation	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°
Working Current	0.23A	0.35A	0.4A	0.45A	0.6A	1.03A	1.85A	2.7A
Drive Motor	50W	75W	80W	100W	130W	210W	285W	360W
Mounting Standard	ISO5211 direct mounting
Voltage Options	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V
Input Signal	4-20mA, 1-5VDC, 0-10VDC
Output Signal	4-20mA, 1-5VDC, 0-10VDC
Protection Class	IP65 protection class
Ambient Temp	-20 to +60°C
Wiring Diagram	A: ON/OFF type with light indicator signal feedback
	B: ON/OFF type with passive contact signal feedback
	C: ON/OFF type with resisance potentiometer signal feedback
	D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback
	E: Regulation type with servo control module
	F: DC24/DC12V direct ON/OFF type
	G: AC380V 3-phase power supply with passive signal feedback
	H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback

Medium	Air, water, oil, etc	Port size	2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″
Structure	Midline structure A type	Voltage	DC-12V, 24V; AC-24V, 110V, 220V, 380V
Port Thread	Wafer	Voltage Tolerance	±10%
Body Material	UPVC	Working Pressure	10 / 16 bar (145 / 232 psi)
Suitable Media	Water, Oil, Air, Gas, etc	Temperature Of Media	-5 to 80℃ (23℉ to 176℉)
