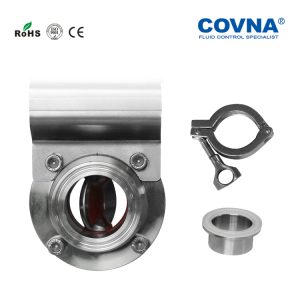

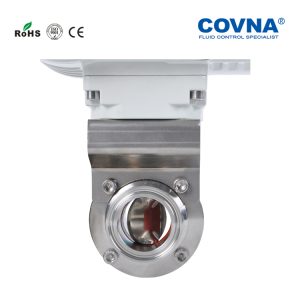

COVNA HK60-D-W Stainless Steel Sanitary Electric Butterfly Valve
Sanitary food grade electric actuator butterfly valve is very suitable for beer, milk, pure water, soft drink, etc. Widely used for food&beverages industry. Large size range for choice, 2 inches to 24 inches are available. Food safe, easy connection. Voltage choice: DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz.
Sanitary food grade electric actuator butterfly valve is very suitable for beer, milk, pure water, soft drink, etc. Widely used for food&beverages industry. Large size range for choice, 2 inches to 24 inches are available. Food safe, easy connection. Voltage choice: DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz.
Actuator type: intelligence type electric actuator, modulating/regulating type electric actuator, on/off control typ eelectric actuator for butterfly valve, ball valve, gate valve, globe valve
| Model | HK60D-W |
| Torque Range | 50Nm to 4000Nm |
| Size Range | 19mm to 102mm |
| Pressure | 10bar, 16bar (145psi, 232psi) |
| Temperature | -10℃ to 180℃ (14℉ to 356℉) |
| Voltage | DC-12V, 24V;
AC-24V, 110V, 220V, 380V |
| Medium | Food, Milk, Soft Drink, Water, And Other Medium |
COVNA HK60-D-W Stainless Steel Sanitary Electric Butterfly Valve
Novel design, reasonable, unique structure, light weight, quick opening and closing
The operating torque is small, the operation is convenient, and the labor-saving and dexterous
It can be installed in any position, easy maintenance
Sealing materials are resistant to aging, corrosion and long service life
Widely used in process control occasions such as food, pharmaceuticals, cosmetics, clean steam, alcohol, beverages, biochemical industrial processes
Technical Parameters of Valve Actuator
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |
| Model | 05 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
Technical Parameters of Valve Body
| Valve Body | Valve components | ||
| Nominal size | DN50-DN400 | Sealing material | PTFE, Silicone |
| Body Material | Stainless Steel | Disc Material | Stainless Steel 316 |
| End Connection | Tri-clamp | Stem Material | Stainless Steel |
| Operating Pressure | 1.0 / 1.6 MPa (10 / 16 bar) | Applicable media | Water, Air, Gas, Petroleum, Oil, Liquid |
| Structure | Midline structure A type | Design standard | GB, ASMI |
| Valve Body | Valve components | ||
| Nominal size | DN50-DN400 | Sealing material | PTFE, Silicone |
| Body Material | Stainless Steel | Disc Material | Stainless Steel 316 |
| End Connection | Tri-clamp | Stem Material | Stainless Steel |
| Operating Pressure | 1.0 / 1.6 MPa (10 / 16 bar) | Applicable media | Water, Air, Gas, Petroleum, Oil, Liquid |
| Structure | Midline structure A type | Design standard | GB, ASMI |
