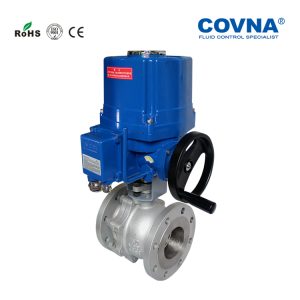

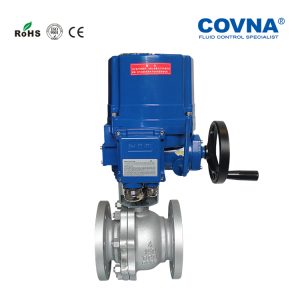

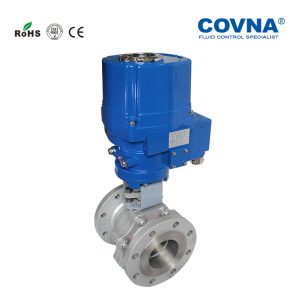

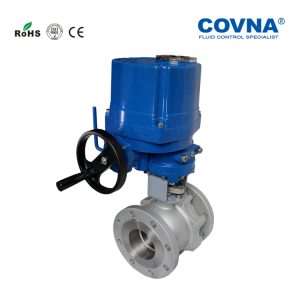

COVNA HK60-EX-F Series Explosion Proof Electric Ball Valve
Benefits Of Explosion-proof Electric Ball Valves:Explosion-proof electric ball valve has the advantages of good explosion-proof performance, high precision, corrosion resistance and intelligence. It is a control device suitable for flammable and explosive environments and strict control requirements.
Benefits Of Explosion-proof Electric Ball Valves:
Explosion-proof electric ball valve has the advantages of good explosion-proof performance, high precision, corrosion resistance and intelligence. It is a control device suitable for flammable and explosive environments and strict control requirements.
The explosion-proof electric ball valve is able to achieve the explosion-proof effect by adopting special structural design and materials to suppress the generation of sparks and the spread of flames.
- Protective housing: The explosion-proof electric ball valve outer casing is made of fireproof and explosion-proof materials, which can withstand external explosion shock waves and high temperatures.
- Explosion-proof motor: The explosion-proof electric ball valve uses a specially designed explosion-proof motor, which can operate normally in flammable and explosive environments without producing electric sparks.
- Explosion-proof control manufacturing: The electrical control system of the explosion-proof electric ball valve also needs to be manufactured in an explosion-proof manner, using explosion-proof components and cables different from ordinary equipment, to ensure that any part of the circuit does not produce sparks or arcs.
- High-standard testing: The explosion-proof electric ball valve needs to undergo a series of strict tests, such as explosion-proof performance testing, temperature testing, electrical performance testing, etc., to ensure that it can work safely and reliably in real explosion environments.
Technical Parameters Of HK60-EX-F Explosion Proof Electric Ball Valve:
| Medium | Oil, gas, fuel, etc | Port size Range | DN15 to DN400 |
| Temperature Of Media | -40℃ to 80℃ (-40℉ to 176℉) (PTFE/PPL Sealing)-40℃ to 350℃ (-40℉ to 662℉) (Metal Sealing) | Actuator Type | Explosion Proof Electric Actuator Type |
| Working Pressure | 10 / 16 / 20 / 64 bar (145 / 232 / 290 / 928 psi) | Body Material | Stainless Steel / WCB |
| Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V | Structure | Flanged ball valve |
| Voltage Tolerance | ±10% | End Connection | Flanged (ANSI, JIS, DIN, GB) |
Dimension Of HK60-EX-F Explosion Proof Electric Ball Valve:

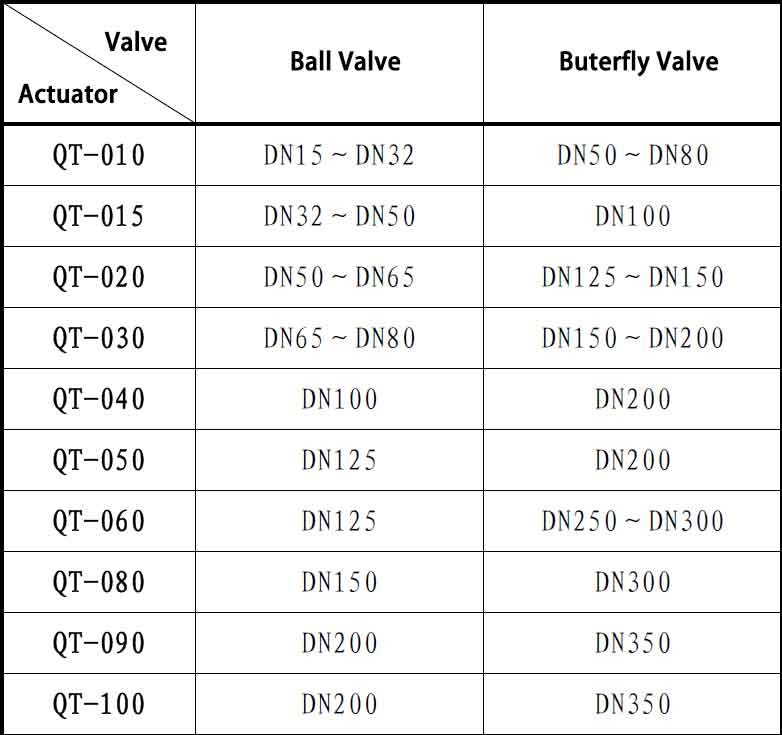

Technical Parameters of Valve Actuator :
| On/Off Type | 90 degree rotation. Feedback: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA |
| Modulating Type | Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm. |
| Intelligent Type | Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply,signal control and manual override. High torque up to 4000Nm. |
| Field Operation | The Field, Remote Control Switch Regulation And MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC-110V, 220V, 380V, DC-12V, 24V, Special Voltage Can Be Customized |
| Protection Class | IP65; Explosion Proof Construction Are Available: EX d II BT4 |
| Medium | Oil, gas, fuel, etc | Port size Range | DN15 to DN400 |
| Temperature Of Media | -40℃ to 80℃ (-40℉ to 176℉) (PTFE/PPL Sealing)-40℃ to 350℃ (-40℉ to 662℉) (Metal Sealing) | Actuator Type | Explosion Proof Electric Actuator Type |
| Working Pressure | 10 / 16 / 20 / 64 bar (145 / 232 / 290 / 928 psi) | Body Material | Stainless Steel / WCB |
| Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V | Structure | Flanged ball valve |
| Voltage Tolerance | ±10% | End Connection | Flanged (ANSI, JIS, DIN, GB) |
