COVNA HK60-Q-3PS Series Electric Ball Valve
COVNA HK60Q-3PS electric ball valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, stainless steel body construction, optional WCB, 220VAC standard voltage, minimum 1/4 inch female thread connection, default PTFE seat, resistant to almost all fluids. Suitable for higher operating pressures and temperatures. Size range available in 1/2 inch, 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch, 2 inch, 2.5 inch, 3 inch and 4 inch. Voltage optional: 12V, 24V DC; 24V, 110V, 220V, 380V AC.
Welcome to contact us to get the most competitive electric ball valve price!
COVNA HK60Q-3PS electric ball valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, stainless steel body construction, optional WCB, 220VAC standard voltage, minimum 1/4 inch female thread connection, default PTFE seat, resistant to almost all fluids. Suitable for higher operating pressures and temperatures. Size range available in 1/2 inch, 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch, 2 inch, 2.5 inch, 3 inch and 4 inch. Voltage optional: 12V, 24V DC; 24V, 110V, 220V, 380V AC.
Welcome to contact us to get the most competitive electric ball valve price!
| Model | HK60-Q-3PS |
| Torque Range | 50Nm to 4000Nm |
| Size Range | 1/4in to 4in (1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 4″) |
| Pressure | 10bar, 16bar, 25bar, 40bar, 64bar |
| Temperature Range | -10℃ to 180℃ (14℉ to 356℉) |
| Voltage Options | DC-12V, 24V AC-24V, 110V, 220V, 380V |
| Medium | Water, Wastewater, Seawater, Air, and another medium |

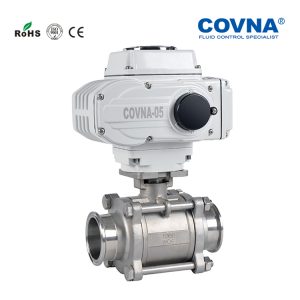

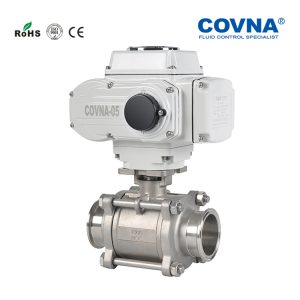

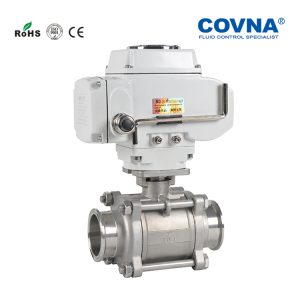

COVNA Electric 3Pieces Stainless Steel Ball Valve
● Features: Compact Design, Eco-friendly, Easy Installation, etc
● Torque: 50N.m or 4000N.m
● Rotation: Quarter-turn
● Actuator Type: ON OFF Type, Regulating Type and Intelligent Type
● Material: Stainless Steel
● Connection: 3PC Thread, Tri Clamp, Flange and Welding
● Suitable for water, oil, air, etc. Widely used in HVAC, irrigation, water treatment, etc.

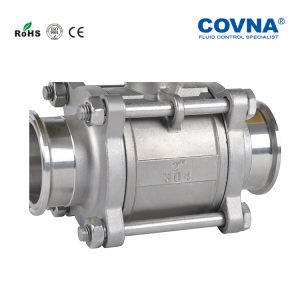

Technical Parameter of Valve Body:
| Body Material | Stainless Steel 304/316/316L | Working Pressure | 10 / 16 / 20 / 64 bar |
| Temperature Of Media | -30~180℃ (-22℉~356℉) | Suitable Media | Water, Air, Oil, Gas, etc |
| Structure | Straight Through Flow Path | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Port size range | DN08-DN100 | Voltage Tolerance | ±10% |
| Actuator Type | ON OFF Type, Modulating Type, Intelligent Type, Explosion-proof Type and Multi-turn Type | Port Thread | Threaded/Flanged/Welding/Tri-clamp |
| Body Material | Stainless Steel 304/316/316L | Working Pressure | 10 / 16 / 20 / 64 bar |
| Temperature Of Media | -30~180℃ (-22℉~356℉) | Suitable Media | Water, Air, Oil, Gas, etc |
| Structure | Straight Through Flow Path | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Port size range | DN08-DN100 | Voltage Tolerance | ±10% |
| Actuator Type | ON OFF Type, Modulating Type, Intelligent Type, Explosion-proof Type and Multi-turn Type | Port Thread | Threaded/Flanged/Welding/Tri-clamp |
