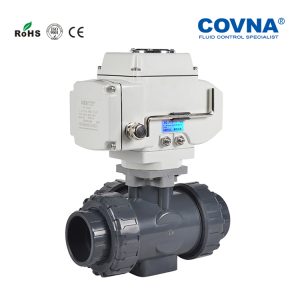

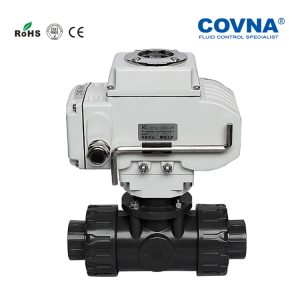

COVNA HK60-Q-PT True Union 3 Way PVC Electric Ball Valve
HK60-Q-PT True Union 3 Way PVC Electric Ball Valve with a 90-degree rotary electric actuator. Bluetooth control and signal control are accepted to help control remotely. Available in T port and L port. Well for water, oil, air diverter and controlled. Widely used in various industries such as water treatment, irrigation, paper and pulp, etc.
COVNA, as an electric ball valve supplier in China, provides various types of electric ball valves to meet your requirements. We are committed to providing a good valve to you and helping to save your time and cost and earn more benefits.
Come and inquiry us to select the right electric ball valve!
HK60-Q-PT True Union 3 Way PVC Electric Ball Valve with a 90-degree rotary electric actuator. Bluetooth control and signal control are accepted to help control remotely. Available in T port and L port. Well for water, oil, air diverter and controlled. Widely used in various industries such as water treatment, irrigation, paper and pulp, etc.
COVNA, as an electric ball valve supplier in China, provides various types of electric ball valves to meet your requirements. We are committed to providing a good valve to you and helping to save your time and cost and earn more benefits.
Come and inquiry us to select the right electric ball valve!
Model
- Actuator Type: ON OFF Type, Modulating Type, Intelligent Type
- Body Material: UPVC, CPVC, PP, PPL
- Pressure: 10 (145 / 232 psi)
- Temperature Of Media: 60℃ (140℉)
- Suitable Media: Corrosive media, Water, Air, etc
- Voltage: DC-12V, 24V; AC-24V, 110V, 220V, 380V
- Connection Type: True Union
| Model | HK60-Q-PT 3 Way Electric UPVC Ball Valve |
| Torque Range | 50Nm to 4000Nm |
| Size Range | 1/2in to 4in (1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2.5″, 3″, 4″) |
| Pressure | 10bar |
| Temperature | -10℃ to 80℃ (14℉ to 176℉) |
| Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Medium | Water, Wastewater, Seawater, Air and other medium |
Benefits Of Electric PVC Ball Valves:
If you are looking for a ball valve that can provide you with a cost-effective fluid control solution, then the electric PVC ball valve will be your first choice. The advantages of Electric PVC ball valves are low cost, lightweight, ultra low torque, preservative, easy operation, and convenient installation and disassembly. Plastic ball valves are suitable for industries at normal temperature and pressure, such as water treatment systems, RO equipment and so on. Moreover,supplementary platform embedded copper nut products convenient automatic actuator. By receiving or feeding back signals from the electric actuator, you can remotely control the valve opening or closing, helping you improve production efficiency.

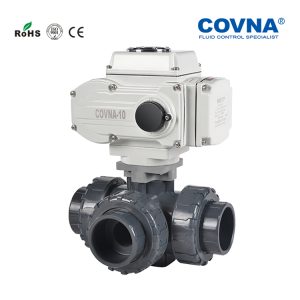

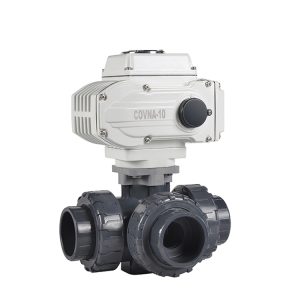

COVNA HK60-Q-PT 3 Way True Union Electric UPVC Ball Valve
● Made by UPVC material with features of low cost, lightweight, anti-corrosive & food safe
● 3 options valve actuator for choice to help your automation easier and meet your actuation needs. Including on/off type,modulating type, intelligent type, explosion-proof type, IP68 type and auto return type valve actuators.
● Manual override is available. It could allow you to open or close the valve manually and keep your project safe when the power off.
● Also available in PPH, CPVC and PVDF material for you.
● 2-way ball valve and 3-way ball valve are available.

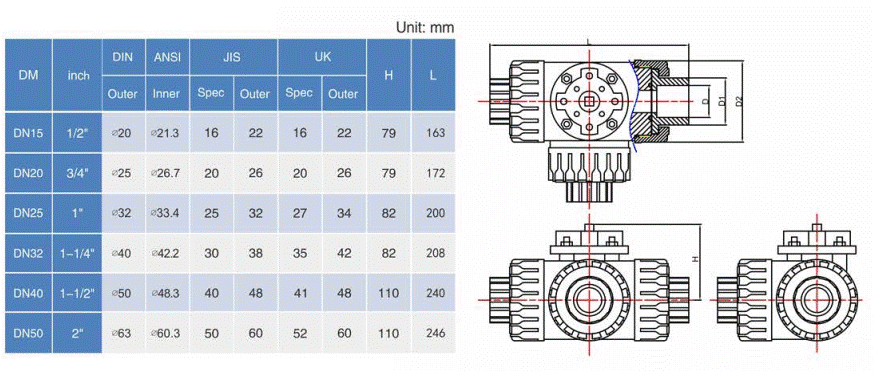

Dimension Of Electric PVC Ball Valve:
Technical Parameters of Valve Actuator :
| On/Off Type | 90 degree rotation. Feedback: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA |
| Modulating Type | Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm. |
| Intelligent Type | Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply,signal control and manual override. High torque up to 4000Nm. |
| Field Operation | The Field, Remote Control Switch Regulation And MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC-110V, 220V, 380V, DC-12V, 24V, Special Voltage Can Be Customized |
| Protection Class | IP65; Explosion Proof Construction Are Available: EX d II BT4 |
Technical Parameters of Valve Body:
| Model | HK60-Q-P | Voltage | 24V/12V DC; 110V/220V AC |
| MOQ | 1 Set | Actuator Type | On Off/ Modulating Control |
| Applicable Standard | GB, ANSI, JIS, DIN | No. of Ways | 2 Way |
| Port Size | DN08~DN100 | End Connection | True union |
| Operating Pressure | 1000 WOG | Media | Water, Air, Gas, Acid base crossoive media |
| Body Material | Plastic PVC | Temp. of Media | -10°C to 180°C |
| Valve Ball | Stainless Steel | Certification | ISO 9001, CE, TUV, SGS |
| Sealing Material | EODM | Warranty | 1 Year (12 Months) |
| Model | HK60-Q-P | Voltage | 24V/12V DC; 110V/220V AC |
| MOQ | 1 Set | Actuator Type | On Off/ Modulating Control |
| Applicable Standard | GB, ANSI, JIS, DIN | No. of Ways | 2 Way |
| Port Size | DN08~DN100 | End Connection | True union |
| Operating Pressure | 1000 WOG | Media | Water, Air, Gas, Acid base crossoive media |
| Body Material | Plastic PVC | Temp. of Media | -10°C to 180°C |
| Valve Ball | Stainless Steel | Certification | ISO 9001, CE, TUV, SGS |
| Sealing Material | EODM | Warranty | 1 Year (12 Months) |
