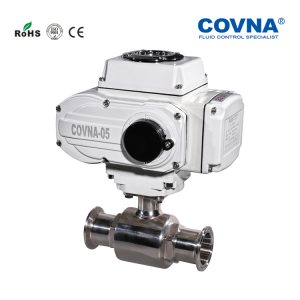

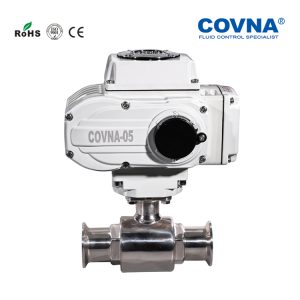

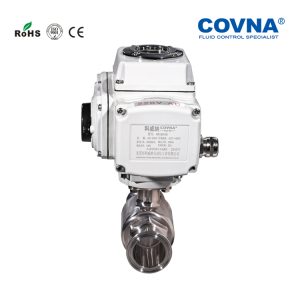

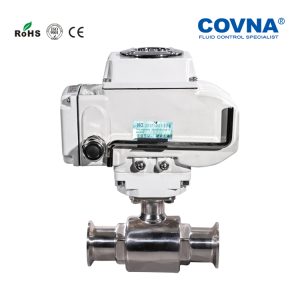

COVNA HK60-Q-W Tri-Clamp Sanitary Food Grade Electric Ball Valve
COVNA HK60-Q-W 2 way food grade electric ball valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, 304 or 316 stainless steel body construction, 220VAC standard voltage, minimum 1/2 inch tri-clamp connection, default PTFE seat, resistant to almost all fluids. Voltage:DC-12V, 24V; AC-24V, 110V, 220V, 380V.
Suitable for food, water, air, milk, pure water, etc.
It has been through the sophisticated inspection process and strict quality management.
COVNA HK60-Q-W 2 way food grade electric ball valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, 304 or 316 stainless steel body construction, 220VAC standard voltage, minimum 1/2 inch tri-clamp connection, default PTFE seat, resistant to almost all fluids. Voltage:DC-12V, 24V; AC-24V, 110V, 220V, 380V.
Suitable for food, water, air, milk, pure water, etc.
It has been through the sophisticated inspection process and strict quality management.
| Model | HK60-Q-W 2-Way Sanitary Ball Valve HK60-Q-WT 3-Way Sanitary Ball Valve |
| Torque Range | 50Nm to 4000Nm |
| Size Range | 19mm to 102mm |
| Pressure | 16bar |
| Temperature | -10℃ to 180℃ (14℉ to 356℉) |
| Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Medium | Milk, Soft Drink, Water and Other Medium |
COVNA Tri-Clamp Food Grade Sanitary Electric Ball Valve
- Features: Compact Design, Eco-friendly, Easy Installation, etc
● Torque: 50N.m or 4000N.m
● Rotation: Quarter-turn
● Actuator Type: ON OFF Type, Regulating Type and Intelligent Type
● Material: Stainless Steel and Plastic
● Connection: Thread, Flange, Tri Clamp and Welding
● Valve Type: 2 Ways or 3 Ways(T Port or L Port)
● Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
● Tolerance: ±10%
● Suitable Medium: Water, Oil, Air, Gas, etc
Technical Parameters of Valve Actuator
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |
Technical Parameters of Valve Body
| Size Range | DN15-100 | Medium | Air, water, steam, oil, liquid, etc |
| Core Materal | Stainless Steel | Structure | 3 Way T Type / L Type |
| Body Material | Stainless Steel | End Connection | Tri-clamp, Butt Welded |
| Voltage | DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz | Voltage Tolerance | ±10% |
| Working Pressure | 1.0 / 1.6MPa (10 / 16 bar) | Temperature Of Media | -30~180℃ (-22℉~356℉) |
