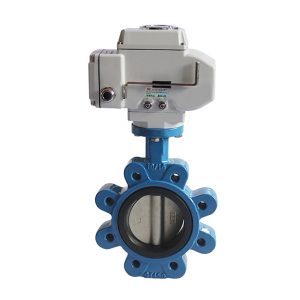

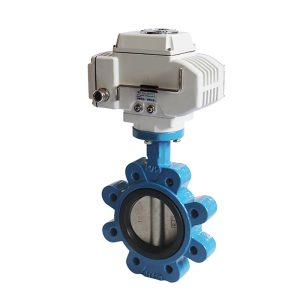

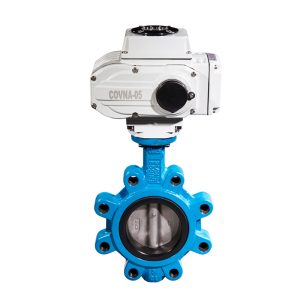

HK60-D-MS Stainless Steel Lug Type Electric Butterfly Valve
COVNA HK60-D-Ms Electric Lug Type Butterfly Valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, stainless steel body construction, optional 304 or 316 stainless steel, 220VAC standard voltage, minimum 2 inch lug connection, default NBR seat, suitable for most air, water, light oil, fuels, solvents, alcohol and many acids, EPDM or VITON is optional.
COVNA HK60-D-Ms Electric Lug Type Butterfly Valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, stainless steel body construction, optional 304 or 316 stainless steel, 220VAC standard voltage, minimum 2 inch lug connection, default NBR seat, suitable for most air, water, light oil, fuels, solvents, alcohol and many acids, EPDM or VITON is optional.
Actuator type: intelligence type electric actuator, modulating/regulating type electric actuator, on/off control typ eelectric actuator for butterfly valve, ball valve, gate valve, globe valve
| Model | HK60D-M Cast iron type butterfly valve
HK60D-MS Stainless steel type butterfly valve |
| Torque Range | 50Nm to 4000Nm |
| Size Range | 2in to 24in (2″, 2-1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 22″, 24″) |
| Pressure | 10bar, 16bar, Class 150, JIS10K |
| Max. Temperature | -10℃ to 180℃ (14℉ to 356℉) |
| Voltage | DC-12V, 24V;
AC-24V, 110V, 220V, 380V |
| Medium | Water, Oil, Air, Gas and other medium |
HK60-D-MS Stainless Steel Lug Type Electric Butterfly Valve
- Electric operated butterfly valve composed of quarter turn electric actuator and stainless steel lugged butterfly valve
● The connection is more secure and zero leakage
● Widely used for petroleum, gas, chemical industry, HVAC, temperature of media: -30~180℃ (-22℉~356℉)
● Manual override is available, diversified performanceTechnical Parameters of Valve Actuator
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistant, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
| Model | 05 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |

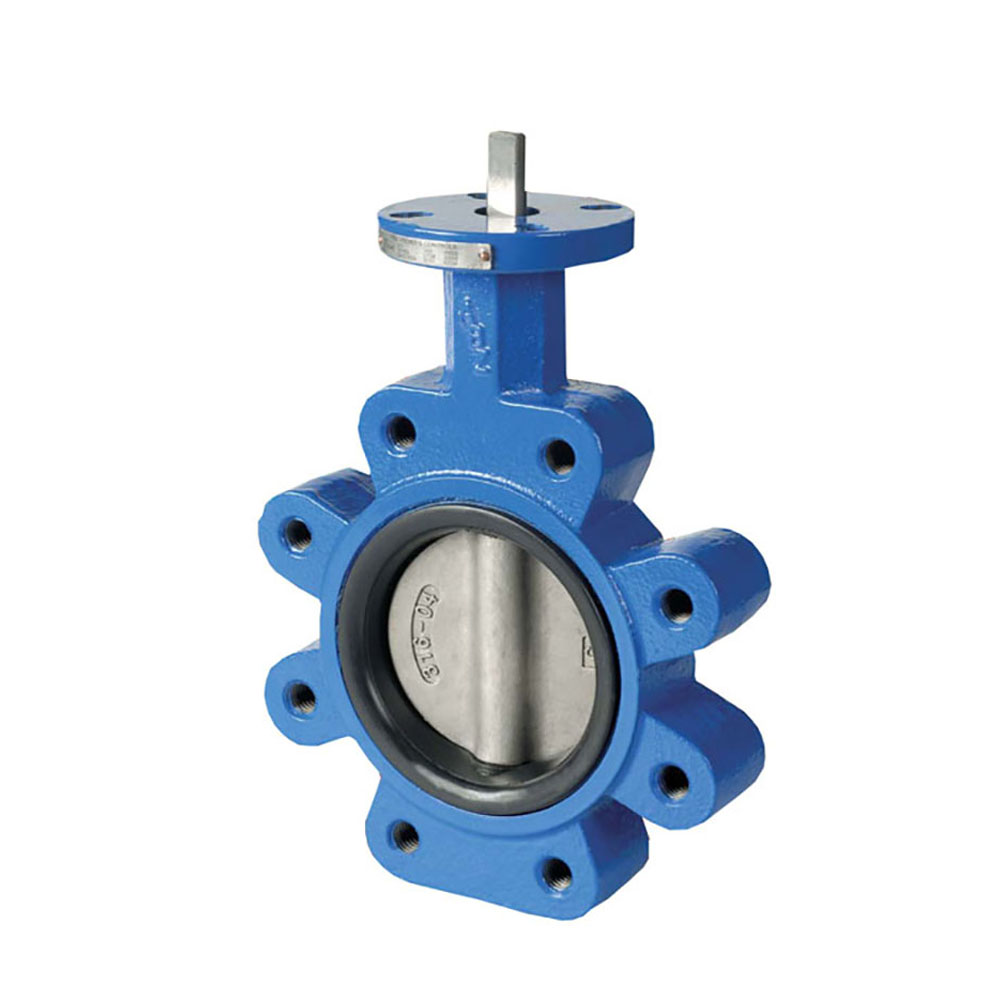

Technical Parameters of Valve Body
| Valve Body | Valve components | ||
| Nominal size | DN50-DN400 | Sealing material | PTFE, EPDM |
| Body Material | Stainless Steel | Disc Material | Stainless Steel |
| End Connection | Lug type | Stem Material | Stainless Steel |
| Operating Pressure | 1.0 / 1.6 MPa (10 / 16 bar) | Applicable media | Water, Air, Gas, Petroleum, Oil, Liquid |
| Structure | Midline structure A type | Design standard | GB, ASMI |
| Valve Body | Valve components | ||
| Nominal size | DN50-DN400 | Sealing material | PTFE, EPDM |
| Body Material | Stainless Steel | Disc Material | Stainless Steel |
| End Connection | Lug type | Stem Material | Stainless Steel |
| Operating Pressure | 1.0 / 1.6 MPa (10 / 16 bar) | Applicable media | Water, Air, Gas, Petroleum, Oil, Liquid |
| Structure | Midline structure A type | Design standard | GB, ASMI |
