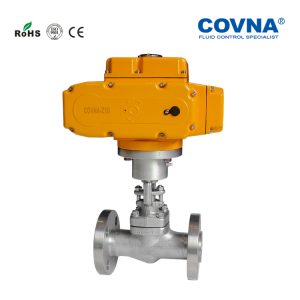

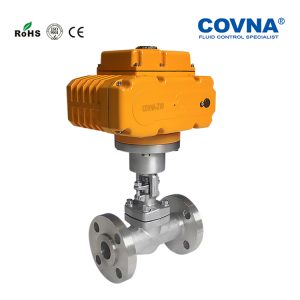

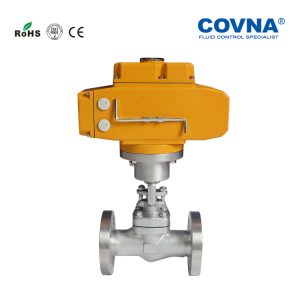

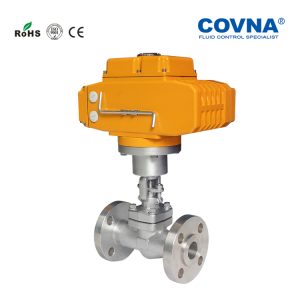

HK60-Z-JS Stainless Steel Multi-turn Actuator Globe Control Valve
Globe valves are ideal for throttling service. Their flow characteristics permit accurate and repeatable flow control. Stainless steel 316 globe valve has a bolted bonnet, non-rising stem, and flanged connections on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system.
Globe valves are ideal for throttling service. Their flow characteristics permit accurate and repeatable flow control. Stainless steel 316 globe valve has a bolted bonnet, non-rising stem, and flanged connections on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system.
The valve body is constructed of stainless steel 316 for higher strength and greater corrosion resistance. The valve has a bolted bonnet for tight assembly and reduced risk of leakage, and flanged end connections for bolting to compatible pipe flanges. The stem/wedge connection meets the API 600 Pull test.
- Model: HK60-Z-JS
● Size Range: 2” to 16”
● Pressure Range: 0.6MPa~2.5MPa
● Material: Stainless Steel
SS316 Motorized Actuator Flange Globe Valve
- Exquisite and small, beautiful and generous, unique internal design, tough and wear-resistant, not easy to damage
- Elegant appearance: die cast aluminum alloy shell, fine and smooth appearance, and can reduce electromagnetic
- Generous function: switch type, passive contact type, proportion type, intelligent adjustment type
- Precise wear resistance: perfect combination of worm wheel and worm, harmonious linkage
- The integration of worm gear output effectively reduces the connection gap and greatly improves the transmission accuracy
- Safety guarantee: through ac1500v voltage withstand test, H-class highly insulated motor, Guarantee the safety of machine body and production
- Simple matching: single-phase, three-phase, DC power supply, simple external line

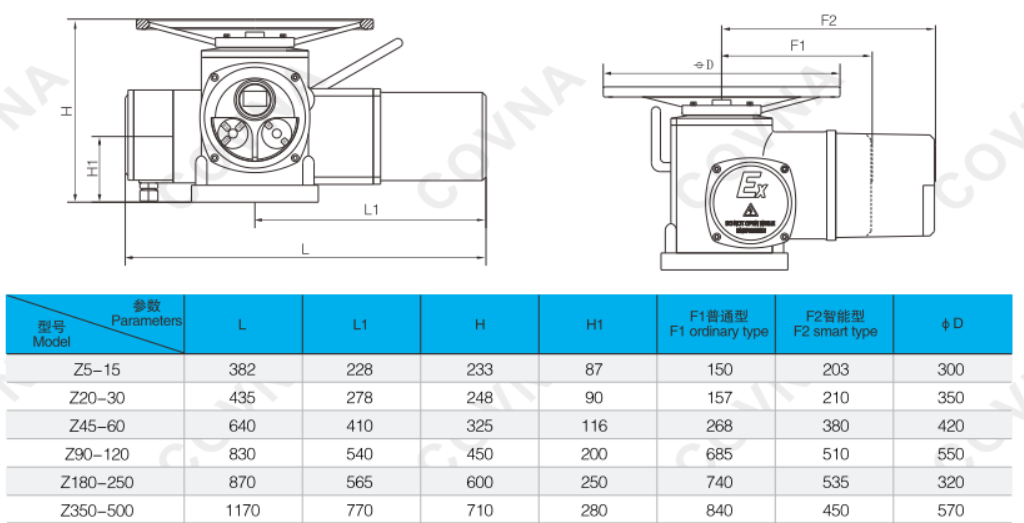

Technical Parameters of Valve Actuator
| Power supply | Conventional: single phase 220v, three phase 380v |
| Special: three phase 400v, 415v, 660v(50Hz, 60Hz) | |
| Working environment | Ambient temperature: -20 ~ + 60 ℃ (special temperature environment can be customized) |
| Relative humidity: 95% (at 25 ° C) | |
| Protection level | Outdoor type and explosion-proof type are IP55 (IP65, IP67, IP68 can be provided for special order) |
| Working system | Short time 10 minutes (15-60 minutes for special order) |
Technical Parameters of Valve Body
| Valve Body | Valve components | ||
| Nominal size | DN50-DN400 | Sealing material | PTFE,NBR,EPDM,VITON |
| Body Material | Cast Iron | Disc Material | SS304 |
| End Connection | Flange | Stem Material | Cast iron, WCB, SS316 |
| Operating Pressure | 1.0 / 1.6 / 2.0 / 2.5 MPa | Applicable media | Water, Air, Gas, Oil, Liquid |
| Structure | Midline structure/A-Type | Design standard | ANSI, JIS, DIN, BS, GB |
| Valve Body | Valve components | ||
| Nominal size | DN50-DN400 | Sealing material | PTFE,NBR,EPDM,VITON |
| Body Material | Cast Iron | Disc Material | SS304 |
| End Connection | Flange | Stem Material | Cast iron, WCB, SS316 |
| Operating Pressure | 1.0 / 1.6 / 2.0 / 2.5 MPa | Applicable media | Water, Air, Gas, Oil, Liquid |
| Structure | Midline structure/A-Type | Design standard | ANSI, JIS, DIN, BS, GB |
